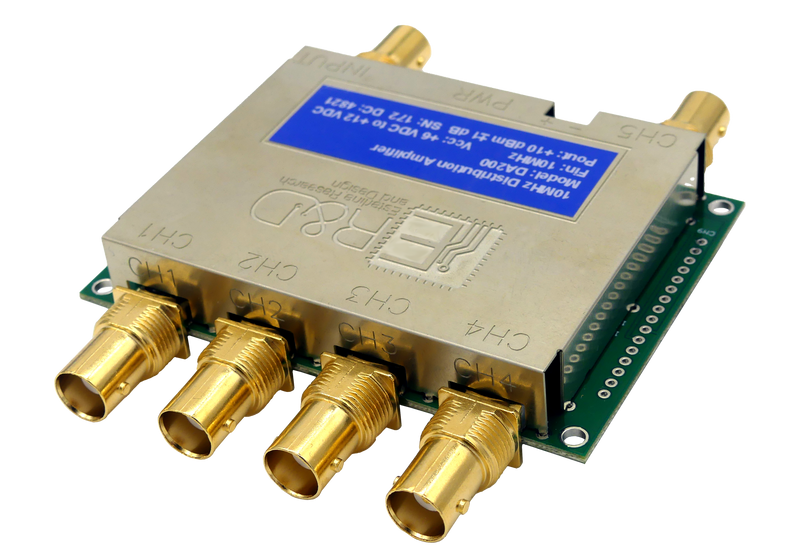

ERD's DA100 and DA200 families of embeddable distribution amplifiers are designed specifically for fixed-frequency sinewave signal distribution.

A cornerstone of our product lineup, the DA100/DA200 series offers customers a selection of standard frequencies (5, 10 and 100 MHz), with custom frequencies available upon request. The DA100/200 series meets the rigorous demands inherent to RF signal distribution in complex systems.

Applications:

• Signal distribution in RF testing and measurement systems
• Clock and timing distribution infrastructure
• RF signal routing in research and development environments
• Military and aerospace communication systems

Key Features:

• Amplitude Leveling: Accepts a wide range of input voltages (-10 to +16 dbm) and delivers the specified output power.
• High Isolation: Minimum -70 dBm channel-to-channel isolation, ensuring signal integrity across all output channels.
• Low Phase Offset: Phase offset of less than 5 ns at 10 MHz from input to any output.
• Low Noise Output: Our newer DA200 series is characterized by its lower phase noise, making it the ideal choice for applications that demand the highest signal fidelity.
• Embeddable: Use as a standalone instrument or Integrate into other system designs as a subsystem module.

Superior Signal Distribution: Both the DA100 and DA200 series are designed to distribute a single input signal to up to five output channels without compromising signal quality. Each channel is buffered and isolated, ensuring high channel-to-channel isolation and consistent performance.

Expandable System Design: For larger systems, multiple DA100 or DA200 amplifiers can be daisy-chained to expand the number of outputs. By connecting the output of channel five to the input of another amplifier, users can increase system capacity:

If channel-to-channel phase offset is critical for a particular application, a single DA100 or DA200 amplifier can drive up to five additional amplifiers, providing up to 25 outputs with minimal phase variation.

Versatile Power Options: The DA100 and DA200 series offer flexible power options, with the ability to operate using user-supplied voltage via screw terminal connections or a 2.1 mm plug from a 6 V, 500 mA power module. This flexibility simplifies system integration and reduces the need for additional power supplies.

The DA100/200 series amplifiers are designed with four mounting holes that provide versatile installation options, including direct integration inside other systems such as 1U or 2U rack-mount instruments. These holes are also compatible with the optional MHMF101 mounting bracket, which is available for purchase as part of the mounting kit, along with all necessary hardware for easy attachment.

Get the DA100 and DA200 Series Today: Upgrade your signal distribution capabilities! For more information, detailed specifications please visit our DA100 and DA200 Product Family web page. To place an order, visit our distributor by clicking the button below:
