Testing Services

Oscillators have a variety of electrical and environmental parameters that can greatly impact the oscillators performance in the application.  Oscillator manufacturers test some of these parameters on 100% of the parts produced and others are "designed to meet".  In either case subtle differences between manufacturing test environment and application conditions can cause vast performance differences which may cause a host of system level problems.  The technical team at Esterline Research and Design have been testing oscillators in manufacturing and application environments for decades and are intimately familiar with the problems that can be encountered.  We offer a wide variety of electrical and environmental testing services.  Custom tests can be defined based on application specific needs.  Common tests performed are as follows:





Please contact sales@esterlineresearch.com for more information regarding our testing services.

  • Activity Dip Testing

    $ 172.74
    Note:  Prices shown above are budgetary and vary based on quantity, temperature range, and ramp rate. Please contact us for pricing inquiries. Test Description: Activity dips are a result of coupled modes inherent in the resona...
    View Details

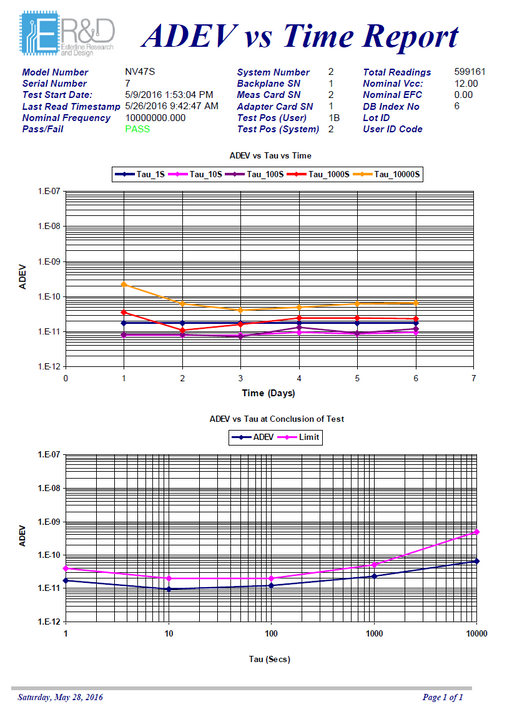

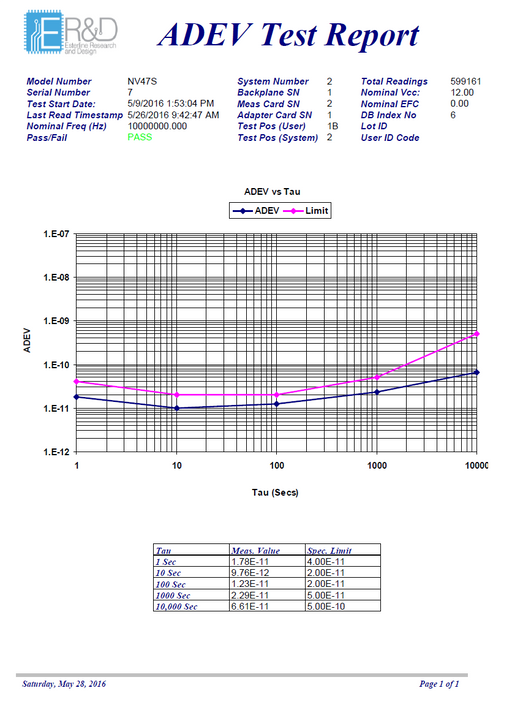

  • ADEV (Allan Deviation) Testing

    $ 337.41
    Note: Prices are budgetary and vary based on quantity, environment, and length of test. Please contact us for pricing inquiries.  Allan Deviation, or ADEV, is a core oscillator specification used across the industry. This core ...
    View Details

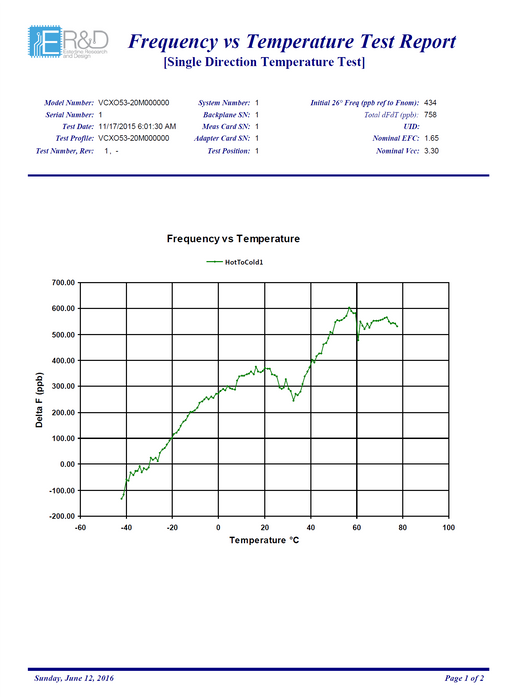

  • Frequency Versus Temperature Testing

    $ 132.58
    The frequency versus temperature performance of an oscillator is one of the primary metrics used to evaluate oscillator environmental stability.  Esterline Research and Design can perform frequency versus temperature testing on...
    View Details

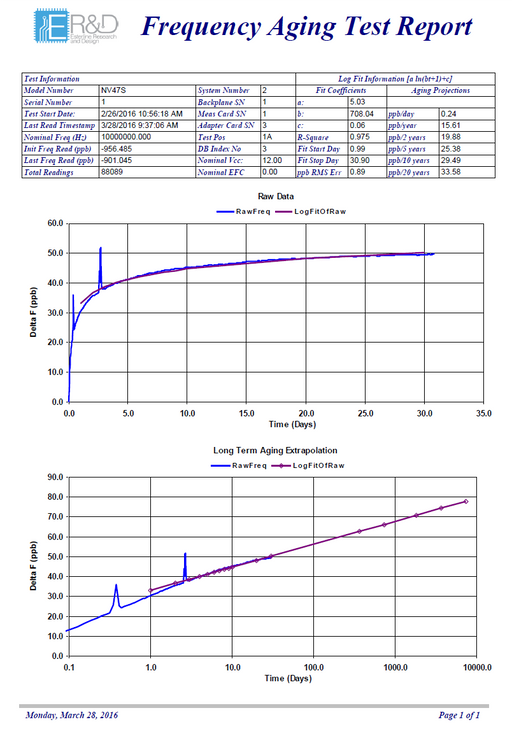

  • Long Term Aging Testing

    $ 856.04 Testing Service
    Note: Price shown above is budgetary pricing for a screen at room temperature over 30 days.  Please contact us for pricing inquiries for long-term aging test services. Price varies based on quantity, temperature range and desir...
    View Details

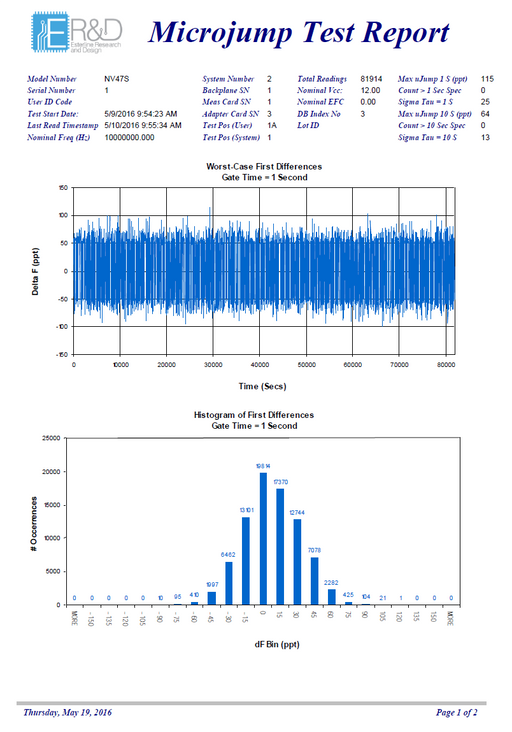

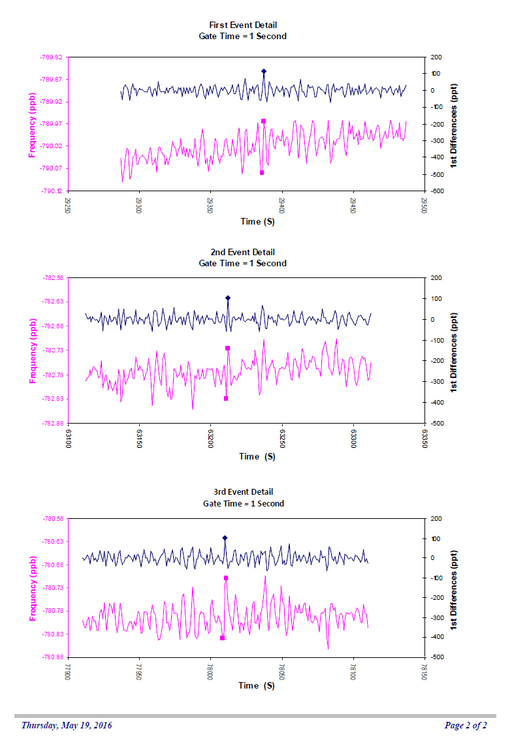

  • Micro-Jump / Phase Jump Screening

    $ 405.00 Electronics, Test Equipment
    Note: Price shown above is budgetary pricing for a screen over one bidirectional temperature run (-20 to +70 °C).  Please contact us for pricing inquiries for micro jump testing services.  Price varies based on quantity, temper...
    View Details

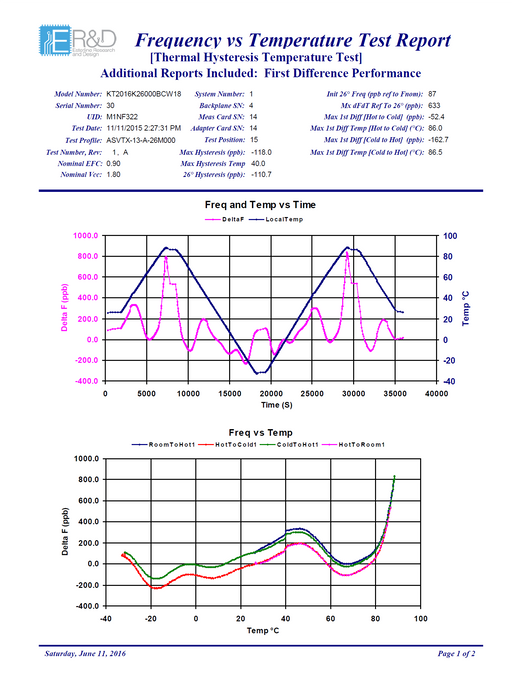

  • Thermal Hysteresis

    $ 172.74 Testing Service
    Note: Price shown above is budgetary pricing for a screen over one bidirectional temperature run (-40 to +85 °C) with 1° C per minute ramp rate and dwells of 30 minutes at temperature extremes.  Please contact us for pricing in...
    View Details

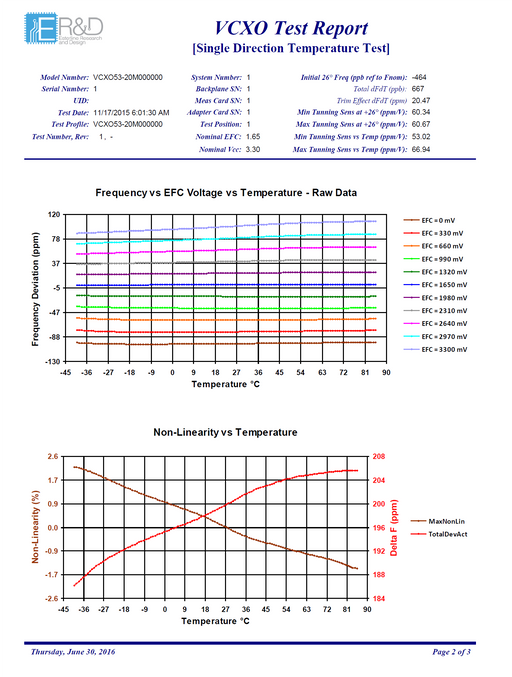

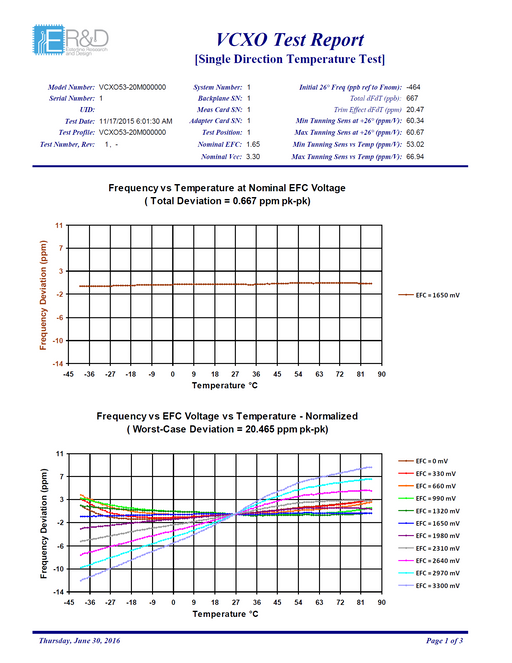

  • Trim Effect Testing

    $ 196.62
    Note: Prices shown above are budgetary and vary based on quantity, temperature range, and footprint. Contact us for pricing inquiries. Trim Effect is a skewing of an oscillator's frequency versus temperature performance as a fu...
    View Details
