DA100

The primary function of our DA100 distribution amplifier is to distribute an existing signal to multiple points while preserving its integrity.

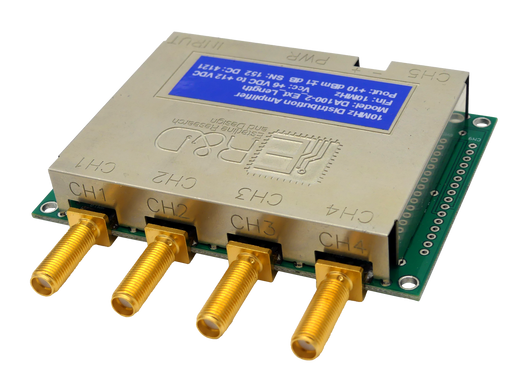

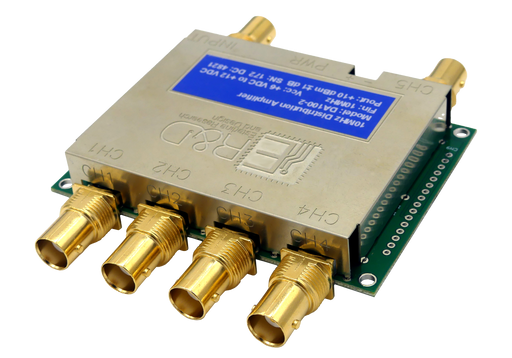

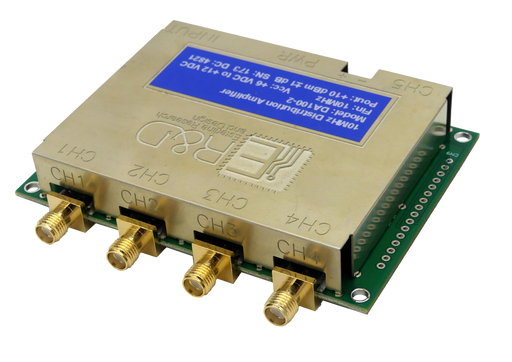

The DA100 has one input channel and five output channels. It may be configured with either SMA or BNC connectors (details provided in the connector table on page 4). The input is AC-coupled and has a 50 Ω source impedance. It includes a limiter circuit that not only provides a fixed output level but also offers high input gain. This design allows the amplifier to maintain the specified output power across a wide range of input power levels.

The input limiter is followed by three amplifier/low-pass filter stages, which insure low-distortion sine wave outputs. The outputs from the filter stages are supplied to fixed-gain output amplifiers. This configuration achieves channel to channel phase offset of under 1 ns; the phase offset from the input to any output is less than 5 ns at 10 MHz.

For larger systems requiring more outputs, multiple amplifiers may be daisy-chained together by connecting the output of channel five to the input of another distribution amplifier. However, this configuration increases phase offset between amplifiers. If channel-to-channel phase offset is a concern, the recommended configuration would be to use a single amplifier to drive up to five additional amplifiers. This will provide up to 25 outputs with minimal channel-to-channel phase offset.

Filters

$
$

DA100-100M00-A

Original price $ 499.99 - Original price $ 539.99
Original price
$ 499.99 - $ 539.99
$ 499.99 - $ 539.99
$ 499.99

This page features the DA100-100M00-A model from our DA100 series of distribution amplifiers, designed for 100MHz operation and equipped with BNC...

View full details

DA100-100M00-B

Original price $ 499.99 - Original price $ 539.99
Original price
$ 499.99 - $ 539.99
$ 499.99 - $ 539.99
$ 499.99

This page features the DA100-100M00-B model from our DA100 series of distribution amplifiers, designed for 100MHz operation and equipped with sho...

View full details

DA100-100M00-C

Original price $ 499.99 - Original price $ 539.99
Original price
$ 499.99 - $ 539.99
$ 499.99 - $ 539.99
$ 499.99

This page features the DA100-100M00-C model from our DA100 series of distribution amplifiers, designed for 100MHz operation and equipped with pane...

View full details

DA100-100M00-D

Original price $ 499.99 - Original price $ 539.99
Original price
$ 499.99 - $ 539.99
$ 499.99 - $ 539.99
$ 499.99

This page features the DA100-100M00-D model from our DA100 series of distribution amplifiers, designed for 100MHz operation and equipped with sho...

View full details

DA100-100M00-E

Original price $ 499.99 - Original price $ 539.99
Original price
$ 499.99 - $ 539.99
$ 499.99 - $ 539.99
$ 499.99

This page features the DA100-100M00-E model from our DA100 series of distribution amplifiers, designed for 100MHz operation and equipped with pane...

View full details

DA100-10M00-A

Original price $ 499.99 - Original price $ 539.99
Original price
$ 499.99 - $ 539.99
$ 499.99 - $ 539.99
$ 499.99

This page features the DA100-10M00-A model from our DA100 series of distribution amplifiers, designed for 10MHz operation and equipped with BNC c...

View full details

DA100-10M00-B

Original price $ 499.99 - Original price $ 539.99
Original price
$ 499.99 - $ 539.99
$ 499.99 - $ 539.99
$ 499.99

This page features the DA100-10M00-B model from our DA100 series of distribution amplifiers, designed for 10MHz operation and equipped with short...

View full details

DA100-10M00-C

Original price $ 499.99 - Original price $ 539.99
Original price
$ 499.99 - $ 539.99
$ 499.99 - $ 539.99
$ 499.99

This page features the DA100-10M00-C model from our DA100 series of distribution amplifiers, designed for 10MHz operation and equipped with panel...

View full details

DA100-10M00-D

Original price $ 499.99 - Original price $ 539.99
Original price
$ 499.99 - $ 539.99
$ 499.99 - $ 539.99
$ 499.99

This page features the DA100-10M00-D model from our DA100 series of distribution amplifiers, designed for 10MHz operation and equipped with short...

View full details

DA100-10M00-E

Original price $ 499.99 - Original price $ 539.99
Original price
$ 499.99 - $ 539.99
$ 499.99 - $ 539.99
$ 499.99

This page features the DA100-10M00-E model from our DA100 series of distribution amplifiers, designed for 10MHz operation and equipped with panel...

View full details

DA100-5M00-A

Original price $ 499.99 - Original price $ 539.99
Original price
$ 499.99 - $ 539.99
$ 499.99 - $ 539.99
$ 499.99

This page features the DA100-5M00-A model from our DA100 series of distribution amplifiers, designed for 5MHz operation and equipped with BNC con...

View full details

DA100-5M00-B

Original price $ 499.99 - Original price $ 539.99
Original price
$ 499.99 - $ 539.99
$ 499.99 - $ 539.99
$ 499.99

This page features the DA100-5M00-B model from our DA100 series of distribution amplifiers, designed for 5MHz operation and equipped with short S...

View full details

DA100-5M00-C

Original price $ 499.99 - Original price $ 539.99
Original price
$ 499.99 - $ 539.99
$ 499.99 - $ 539.99
$ 499.99

This page features the DA100-5M00-A model from our DA100 series of distribution amplifiers, designed for 5MHz operation and equipped with panel-m...

View full details

DA100-5M00-D

Original price $ 499.99 - Original price $ 539.99
Original price
$ 499.99 - $ 539.99
$ 499.99 - $ 539.99
$ 499.99

This page features the DA100-5M00-D model from our DA100 series of distribution amplifiers, designed for 5MHz operation and equipped with BNC con...

View full details

DA100-5M00-E

Original price $ 499.99 - Original price $ 539.99
Original price
$ 499.99 - $ 539.99
$ 499.99 - $ 539.99
$ 499.99

This page features the DA100-5M00-E model from our DA100 series of distribution amplifiers, designed for 5MHz operation and equipped with panel-mo...
