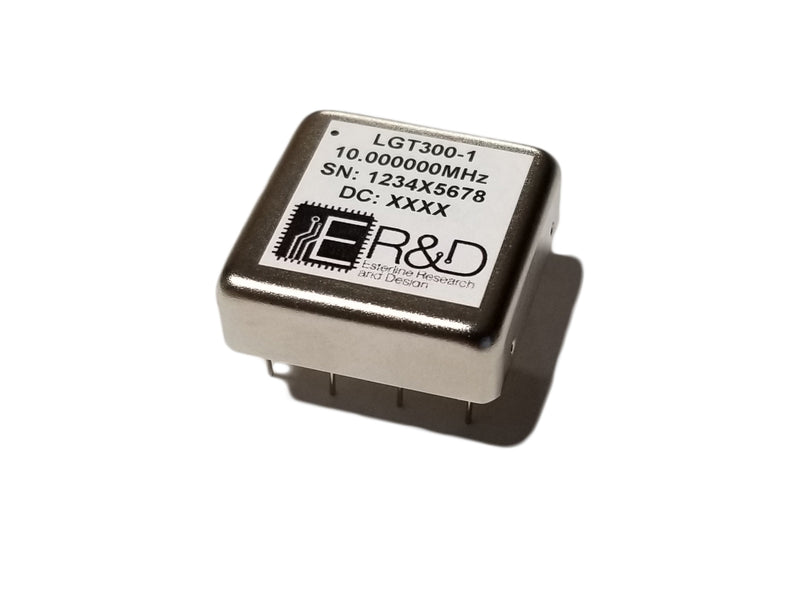

NPA: LGT300 Ultra-Low G-Sensitivity TCXO

NPA: LGT300 Ultra-Low G-Sensitivity TCXO

NPA: LGT300 Ultra-Low G-Sensitivity TCXO

Esterline Research and Design is pleased to announce the release of a new Ultra-Low-G product family.  By incorporating our patented MSAC compensation architecture as an additional layer of precise compensation applied to a ultra-low acceleration sensitivity TCXO design, the new LGT300 series achieves frequency stability performance of less than ±5 ppb over the temperature range of -40°C to +105°C.    The LGT300 design platform can deliver world class acceleration sensitivity of less than 0.005 ppb/g TOTAL GAMMA, translating into minimal phase noise degradation under vibration.  This makes the LGT300 perfectly suitable for high vibration and shock environments, such as industrial construction equipment, autonomous agricultural vehicles, commercial and military aircraft, and smart munitions, etc.



Other unique performance features include the option of ordering ±1000 ppm frequency pulling and long-term aging drift of less than ±100 ppb over ten years of continuous operation.



The standard product offers a +5V supply, LVCMOS output, and a custom output frequency to six decimal places within the range of 1 to 60 MHz. Static phase noise at 10 MHz operating frequency and 1 KHz offset is better than -145 dBc/Hz.



The LGT300 is available in the industry standard Euro-package footprint, with a seated height of less than 0.38 inches.



Other standard/custom package options can be considered as part of the customer requirements negotiation.

 Datasheet

For more information please call our experienced application engineering staff at 717-348-5326 or 630-201-7141.
