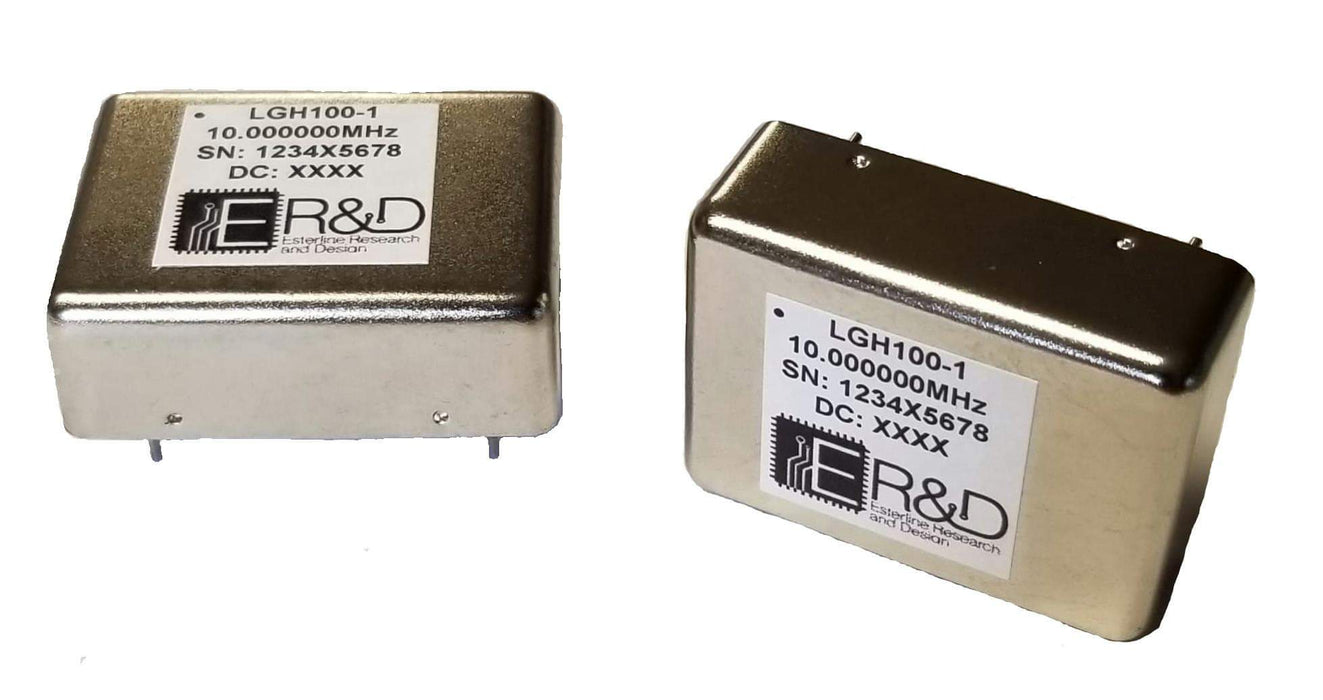

LGH100 Ultra-Low-G-Sensitivity OCXO

Note: Prices shown above are budgetary and for a 10 MHz LGH100 with an operational temperature range of -40°C to +85°C. For other frequencies and configurations, contact us.




Key Features:

  • As good as 0.01 ppb/g per axis
  • Within pull range in 0.1 seconds
  • As low as ±0.25 ppb over temp.
  • Up to +/- 1000 ppm pull range
  • Aging as low as +/- 50 ppb over 10 years

Common Applications:

  • GPS/GNSS
  • Naval Vessels
  • Commercial and Military Aircraft
  • Smart Munitions
  • Ground Vehicles
  • Industrial Construction Equipment
  • Autonomous Agricultural Vehicles

Functional Description:

The LGH100 Ultra-Low-G product family, incorporates Esterline Research and Design’s patented MSAC compensation architecture within an ovenized oscillator temperature control system. This compensation achieves frequency stability performance of less than ±0.25 ppb over the temperature range of -40°C to +105°C. The LGH100 design platform can deliver acceleration sensitivity performance of less than 0.01 ppb/g, translating into minimal phase noise degradation under vibration.



The LGH100 also offers other unique and performance enhancing features. Vastly superior turn-on characteristics as compared to traditional OCXO product offerings, with turn-on stability within +/-100 ppb of final frequency after 1 second of operation. Wide pull ranges are also available up to +/-1000 ppm, and superior aging options as low as +/-50 ppb over 10 years life also available with the LGH100.
