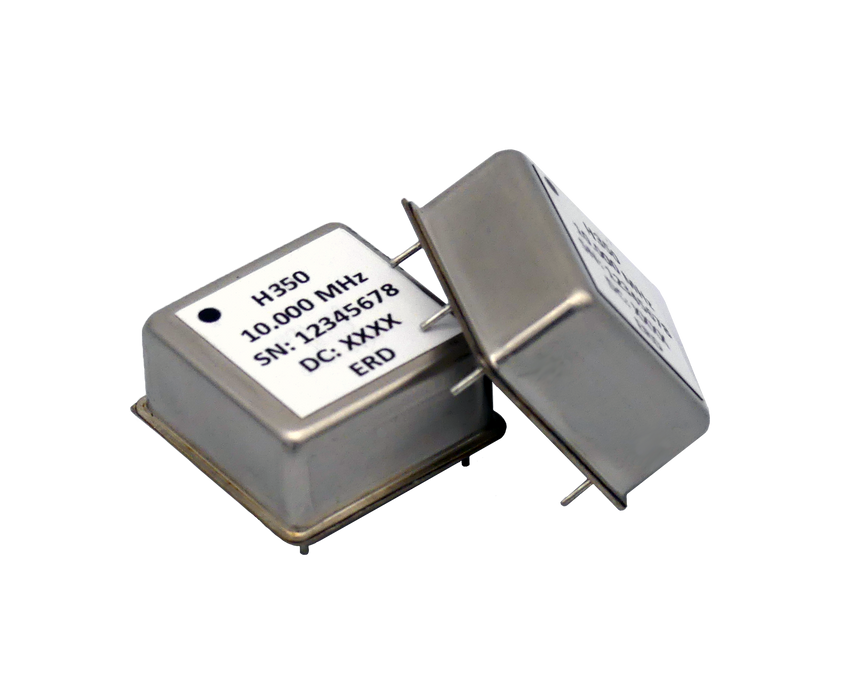

H350 Series Highly-Stable OCXOs

Note:
Prices can vary based on options selected. For pricing on a specific configuration, contact us.








Key Features:

  • Standard 10 MHz Frequency
  • 25.8 mm x 25.8 mm x 12.8 mm package
  • +/- 3 ppb over industrial temp
  • 5.0V supply
  • 4.0V Ref. Voltage Out
  • Sine Wave output

    Common Applications:

    • SDH/SONET
    • Cellular base stations
    • Test Instrumentation •
    • Synthesizers
    • SATCOM terminals

    Functional Description:

    The H350 10MHz OCXO represents an industry-standard frequency reference source with a volume production record of high reliability for a wide range of RF applications. Due to this large-scale production, the H350 presents a cost-effective solution to many customer requirements while providing industry-leading performance.

    With temperature stability as good as ±3 ppb over the range of -40°C to +85°C, the H350 outperforms many competitor parts in the same package size. The H350 comes in a 25.8 mm x 25.8 mm x 12.8 mm package, lending itself to applications with tight footprint requirements.

    An optional reference voltage output gives the user a stable, ovenized voltage reference to derive their control voltage (EFC) from. This will result in less skew over temperature than using contemporary methods of EFC generation.
