Single Channel Oscillator Evaluation Board

OEB100-1 Single Channel Oscillator Evaluation Board

by ER&D
$ 49.99
Quantity

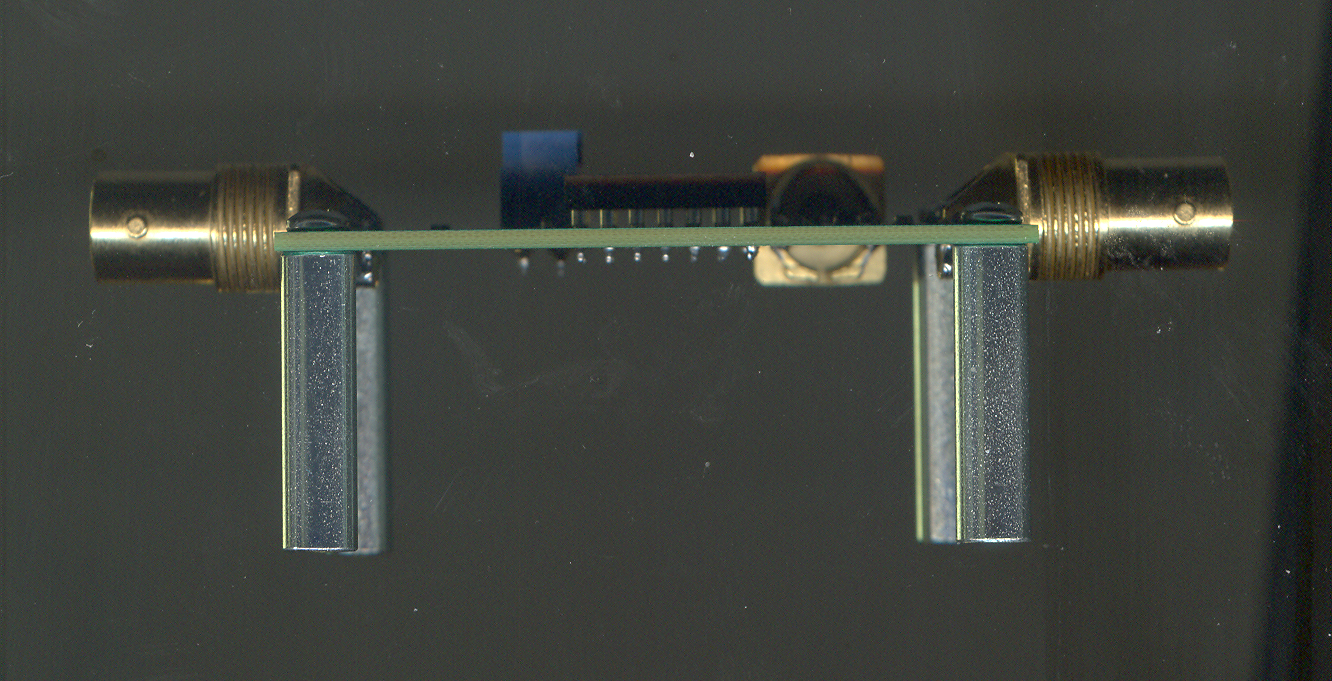

The OEB100-1 is meant to give users the ability to test a variety of oscillators.  The 14 pin DIP socket can accept full can oscillators or half can oscillators.  Oscillator output is accessible via a BNC connector.  Control Voltage (EFC) input is available through a BNC connector.  3 different power connections are available (BNC, screw terminals, or barrel jack).

Ideal for interfacing with test equipment to easily measure the following oscillator parameters:

Frequency
Frequency Pulling
Aging
Wave Form Characteristics
Current Consumption
Phase Noise
Micro-jumps
Jitter
