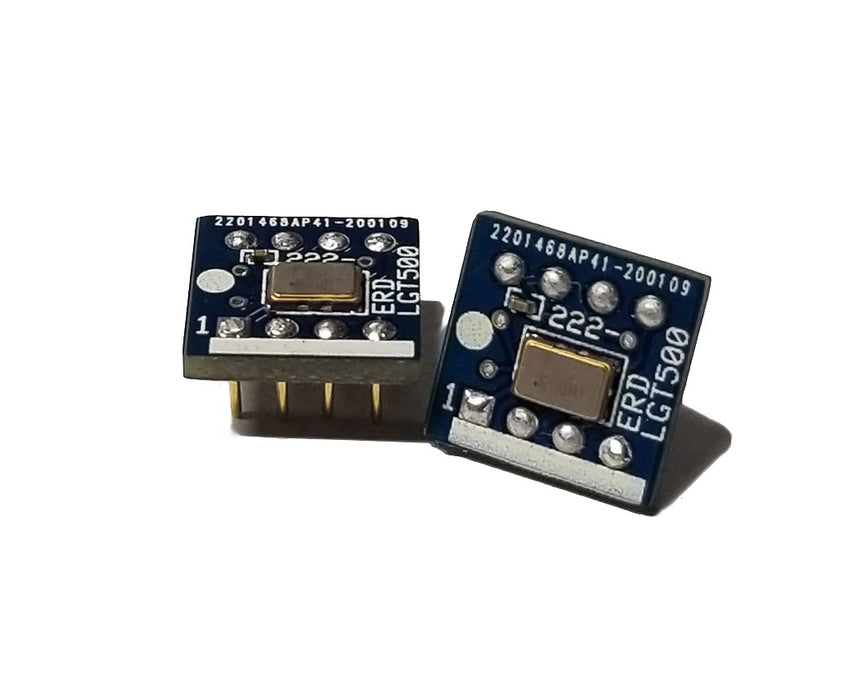

LGT500 Ultra-Low-G-Sensitivity TCXO

.

Key Features:

  • As good as 0.005 ppb/g per axis
  • Within pull range in 0.1 seconds
  • As low as ±5 ppb over temp.
  • Up to +/- 1000 ppm pull range
  • Aging as low as +/- 100 ppb over 20 years

Common Applications:

  • GPS/GNSS
  • Naval Vessels
  • Commercial and Military Aircraft
  • Smart Munitions
  • Ground Vehicles
  • Industrial Construction Equipment
  • Autonomous Agricultural Vehicles





Datasheet


Functional Description:

        The LGT500 Ultra-Low-G product family incorporates Esterline Research and Design’s patented MSAC compensation architecture over the customer-specified operating temperature range.  The MSAC technology achieves frequency stability as low as ±5 ppb over a range of-40°C to +105°C. The LGT500 design platform can deliver acceleration sensitivity performance of less than 0.005 ppb/g, translating into minimal phase noise degradation under vibration.

        The LGT500 also offers other unique performance enhancing features, including vastly superior turn-on characteristics as compared to OCXO product offerings, with turn-on stability within ±100 ppb of final frequency after 1 second of operation.  Superior aging options as low as ±100 ppb over 20 years life are also available.
