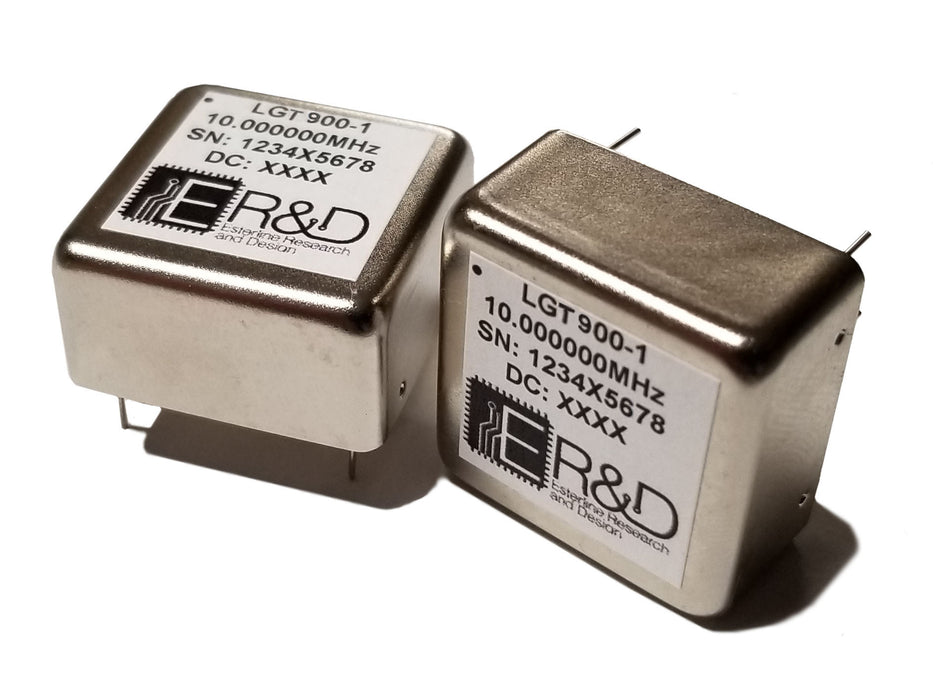

LGT900 Ultra-Low-G, 1PPS-Disciplinable TCXO
by Esterline Research & Design $ 0.00Note: Prices will vary based on the combination of options selected. To price a specific configuration, contact us.
Datasheet
Key Features:
- As good as 0.01 ppb/g per axis
- +/- 0.5 ppb accuracy under lock
- As low as ±0.50 ppb over temp.
- Aging as low as +/- 100 ppb over 20 years
- Frequency Output to nearest 1 Hz
Common Applications:
- GPS/GNSS
- Naval Vessels
- Commercial and Military Aircraft
- Smart Munitions
- Ground Vehicles
- Test Instruments
- Front-haul switches
Functional Description:
The LGT900 Ultra-Low-G product family, is a 1 PPS-disciplined TCXO incorporating Esterline Research and Design’s patented MSAC compensation architecture. This platform achieves frequency stability performance of less than ±2.00 ppb over the temperature range of -40°C to +85°C. The LGT900 design platform can deliver acceleration sensitivity performance of less than 0.01 ppb/g, translating into minimal phase noise degradation under vibration.
The LGT900 also offers other unique and performance-enhancing features such as vastly superior turn-on characteristics as compared to OCXO product offerings. A turn-on stability within +/-150 ppb of final frequency after 1 second of runtime is achieved before signal lock to nominal frequency. Superior aging options as low as +/-50 ppb over 20 years can be selected.
Standard Specifications:
Part Number Builder:
Pinout:
