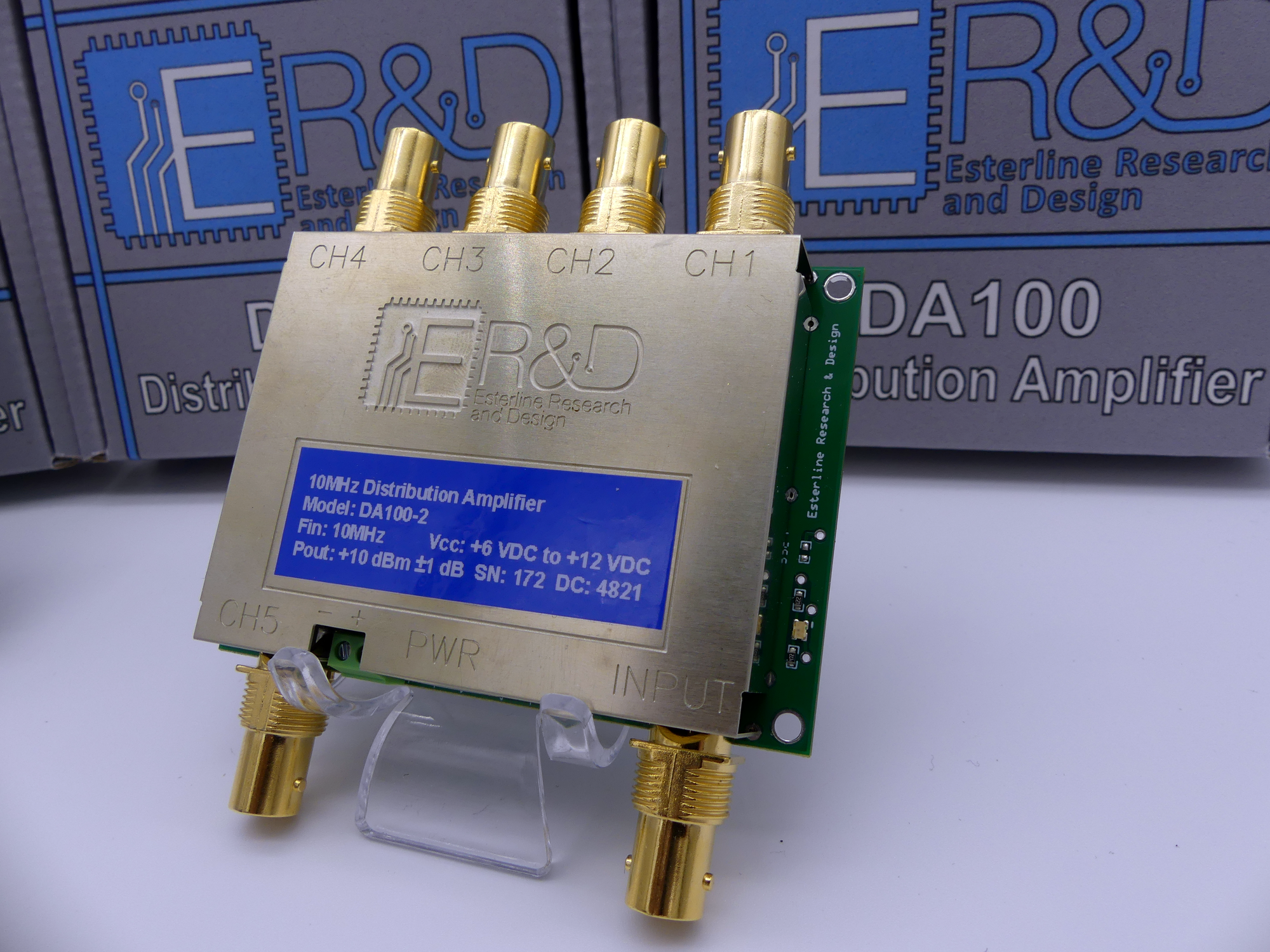

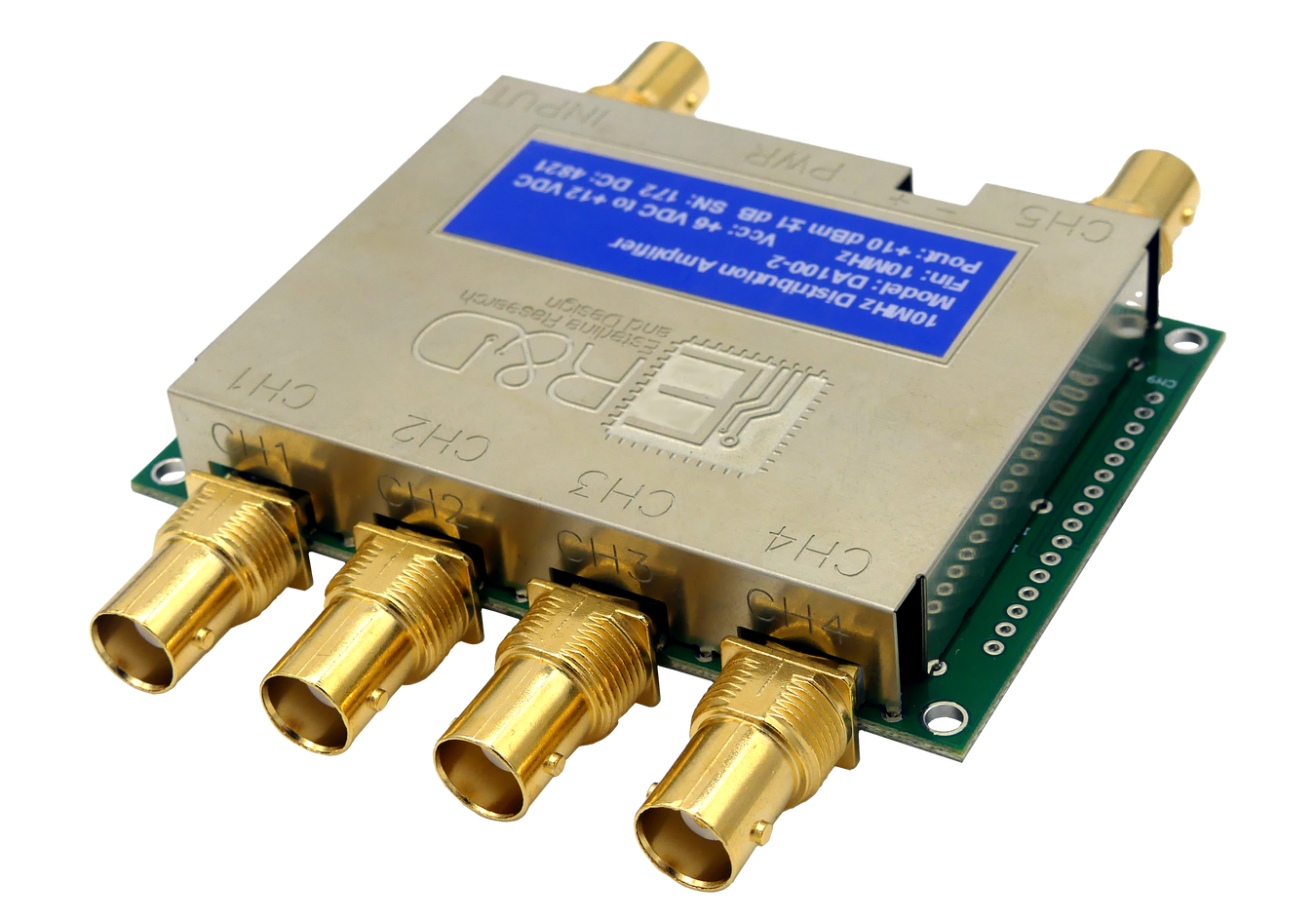

Distribution Amplifiers

Esterline R&D's distribution amplifiers are low noise amplifiers that accept a reference input from -12dBm to +15dBm. The amplifiers have 5 sine wave output channels at +10dBm +/-1dBm. The miniature footprint of the module is only 3.5" x 3.25" x 0.65", making it excellent for embedding in RF systems and high precision automated test sets.

Purchase Now

5 Channel Clock Generator

Coming Soon! The 5 Channel Clock Generator can generate 5 simultaneous CMOS channels from 0.02 Hz to 128 MHz. With useful features such as duty cycle set and phase sift between channels, the CG5 is a useful bench tool for debugging circuits and signal generation.

Coming Soon

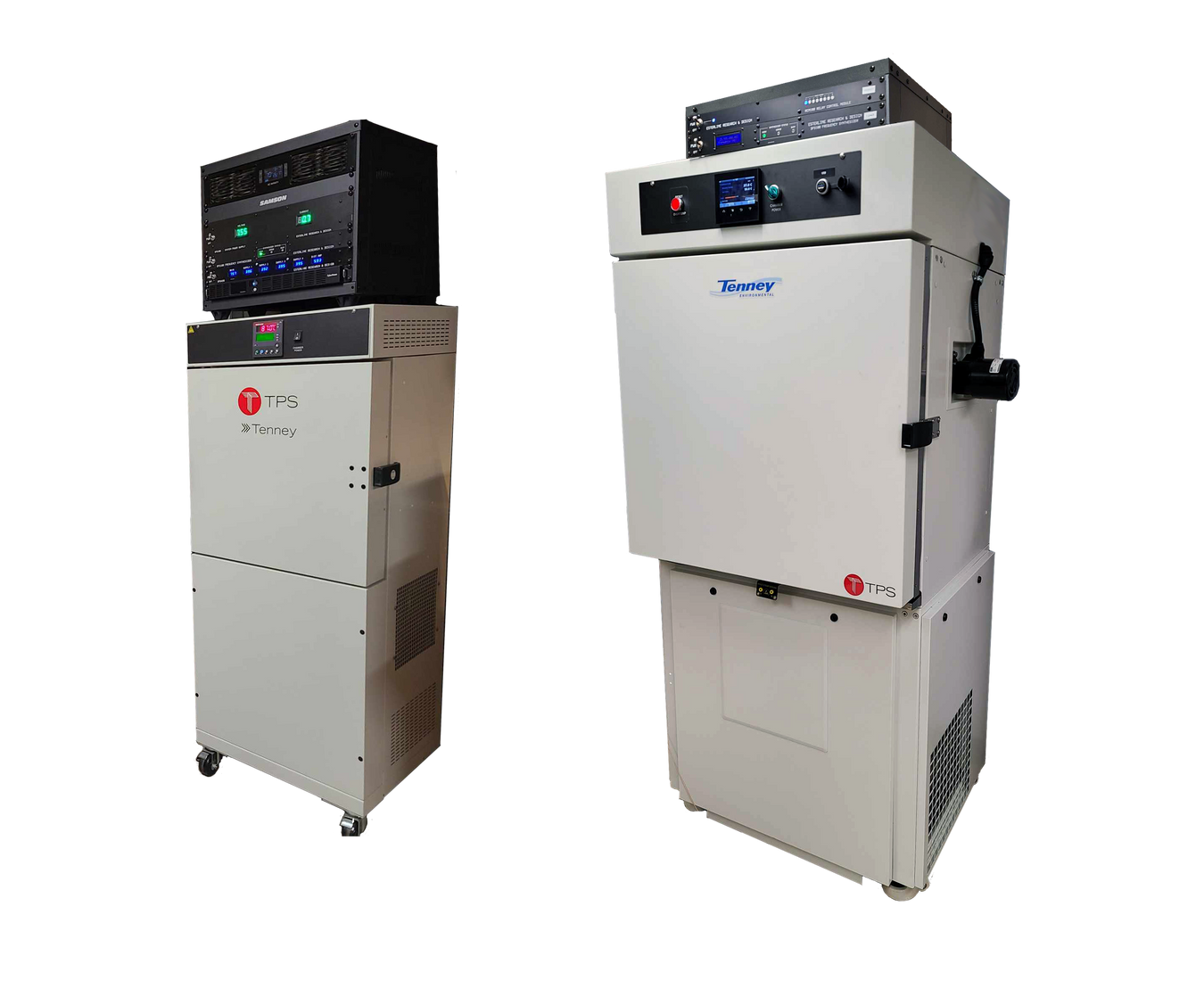

Microjump Testing

Micro jumps are an oscillator phenomenon where the frequency of the oscillator changes suddenly. These events are often random and non repeatable. The sudden change in frequency (thus phase) can cause many phase lock loops to lose lock. Esterline Research and Design performs micro jump testing on virtually any electronic oscillator.

Find out more

Consulting

Esterline Research and Design's experienced engineers provide consulting in a wide variety of subject matter. We offer consulting services in the following areas; Frequency Control, Micro-Controllers, Test and Automation, RF Circuit Design and Board layout, Ceramic design (substrate and multi-layer packages), and general programming and coding for a variety of applications.

Attention to Detail

At Esterline Research Design, we pride ourselves on attention to detail. The very core of our existence is built on it and the concept that "close enough is never enough". Whether it's design, manufacturing or consulting, we strive for perfection.

M-SAC Intellectual Property

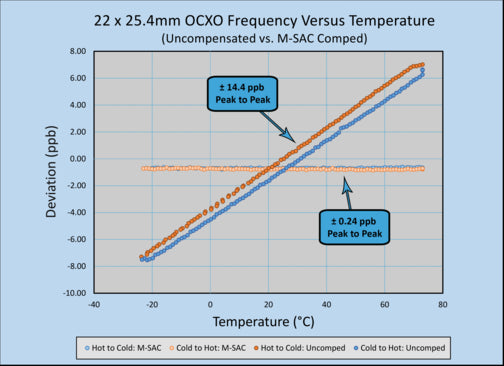

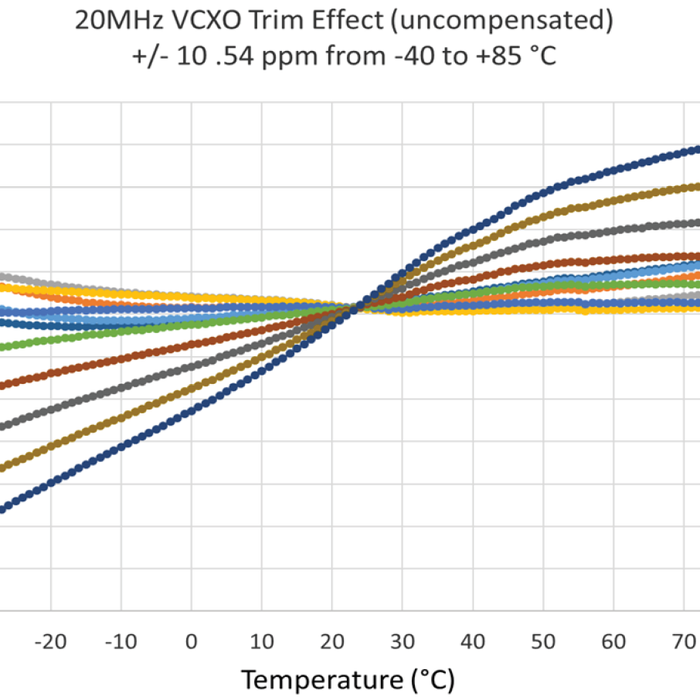

Esterline R&D's patent pending M-SAC intellectual property, advances the state of the art in oscillator environmental compensation technology. For use directly in oscillators or embedded at the system level, it allows for the improvement of frequency deviation caused by environmental factors such as temperature and trim.

M-SAC




Latest News

Featured Products

Esterline Research and Design

105 S Locust St
Shiremanstown, PA 17011
Ph: 717-348-5326
