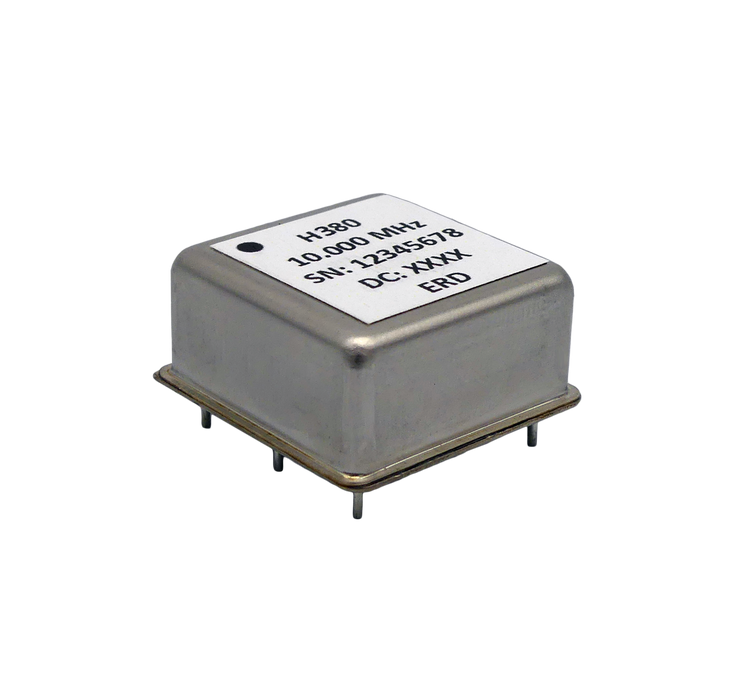

H380 Series Highly-Stable OCXOs
by Esterline Research & Design $ 0.00
Please Call For More Information (717) 348-5326
Note:
Prices can vary based on options selected. For pricing on a specific configuration, contact us.
Datasheet
Key Features:
- Ultra low G Sensitivity
- Low Phase Noise
- Tight Frequency Stability
- Fast Warm-up Time
- 10V Ref. Voltage Out
- Sine Wave output
Common Applications:
- Microwave Communication
- Test and Measurement
- Telecom Systems
- Radar Systems
- Medical (MRT)
Functional Description:
The H380 100MHz OCXO presents a low-G, low-phase-noise solution to a variety of RF applications.
With a floor better than -170 dBc/Hz, the H380 ensures a high-fidelity signal with minimal degradation.
This OCXO platform boasts G-Sensitivity as good as 0.05 ppb/g (per axis), rivaling many best-in-class counterparts. The H380 comes in a 25.8 mm x 25.8 mm x 12.8 mm package, lending itself to applications with tight footprint requirements.
A 10 Volt reference voltage output gives the user a stable, ovenized voltage reference to derive their control voltage (EFC) from. This will result in less skew over temperature than using other contemporary methods of EFC generation.
