SCV100 Series VCXO

SCV100 Series VCXO

by Esterline Research & Design
$ 221.61
Quantity
Note: Prices shown above are budgetary and for a 100 MHz SCV100 with an operational temperature range of -40°C to +85°C. For other frequencies and configurations, contact us.


Data Sheet

Key Features:

  • Wide-pull VCXO with precision TCXO performance
  • Unmatched wide temperature range and stability
  • Temperature stability as low as ±0.2 ppm

Common Applications:

  • Test instrumentation
  • Satcom terminals
  • Broadcast reference standard
  • Military weapon/communication systems

Functional Description:

Our SCV100 series of VCXOs, combines our patent-pending M-SAC technology with state-of-the-art oscillator designs and high-quality resonators, allowing system designers to leverage unprecedented combinations of pullability, stability, and phase noise performance.

This series is compensated for trim effect to ensure that temperature stability performance is maintained as the frequency is adjusted by the user to correct for aging. Stability degradation resulting from frequency adjustment is virtually ignored by other manufacturers and our compensation ensures that ppb-level stability is maintained even for pullability in excess of ±1000 ppm!

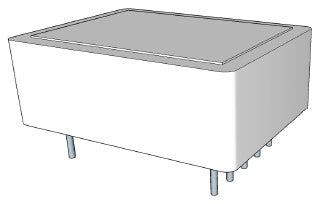

The 36 mm X 27 mm CO8, or “EURO” package makes the SCV-series VCXO an ideal choice for both new  designs as well as upgrade opportunities.



Standard Specifications:


Ordering Information:






Outline Drawing:
