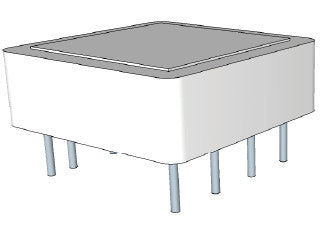

SCT100 Series TCXO

SCT100 Series TCXO

by Esterline Research & Design
$ 210.26
Note: Prices shown above are budgetary and for a 10 MHz SCT100 with an operational temperature range of -40°C to +85°C. For other frequencies and configurations, contact us.

Data Sheet

Key Features:

  • OCXO performance without the negative warm-up characteristics of an OCXO
  • Compensated for trim effect
  • Temperature stability as low as ±20 ppb
  • Clipped-sine output

Common Applications:

  • Test instrumentation
  • Low-power communications systems
  • GPS applications
  • OCXO replacement

Functional Description:

The SCT-series TCXO combines our patent-pending M-SAC compensation technology with state-of-the-art oscillator designs to produce TCXOs that outperform many OCXO designs for stability, warm-up time, and input power. This series offers temperature performance unmatched by any other TCXO on the market today and is offered in a small-footprint, one-square-inch hermetic package.

This product is compensated for trim effect to ensure the temperature stability performance is maintained as the frequency is adjusted by the user to correct for aging.  Stability degradation resulting from frequency adjustment is virtually ignored by most manufacturers, and the M-SAC compensation ensures the low-ppb temperature stability achieved by SCT-series TCXOs is maintained at frequency adjustment extremes.

Standard Specifications:


Ordering Information:


Outline Drawing:
